HRC Couplings are couplings for general application with a flexible element which can counterbalance higher degree of misalignment: Parallel misalignment up to 0.5 mm and Axial misalignment up to 1.7 mm. Because of their superior design HRC couplings can fit larger shafts which make them a very interesting product.

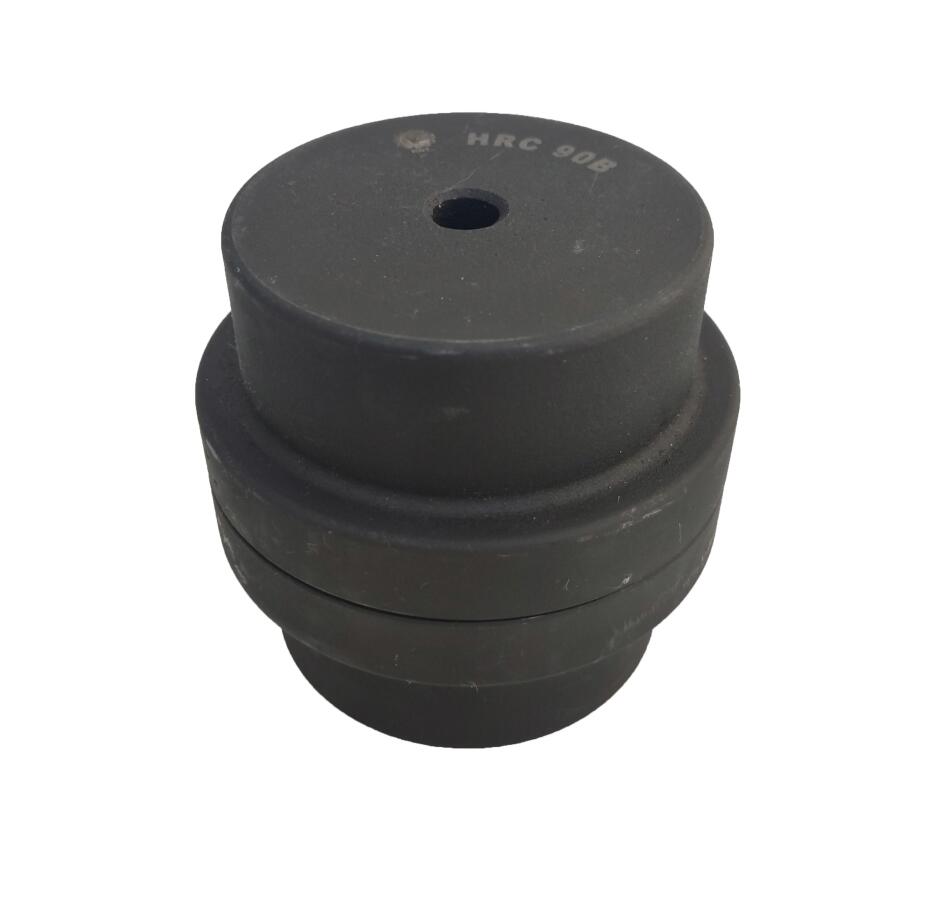

HRC couplings
HRC Couplings are couplings for general application with a flexible element which can counterbalance higher degree of misalignment:
Parallel misalignment up to 0.5 mm and Axial misalignment up to 1.7 mm.
Because of their superior design HRC couplings can fit larger shafts which make them a very interesting product.
Salient features
ECONOMY
The design of the coupling has been optimised so that power capacities are balanced to the appropriate shaft diameters utilising Taper-Lock® Bush fixing.RESILIENCE
Transient peak loads are reduced by a flexible component, deflection of which is a prime designconsideration.
MISALIGNMENT
Incidental parallel, angular and axial displacement of the connected shafts can be adjusted.
INSTALLATIONQuick and easy without special tools, only an allen key is required.
MAINTENANCE
Virtually eliminated and no lubricant is required.
ENVIRONMENT
The elastomeric component makes coupling suitable for use in most conditions within a temperature range of -40°C to +100°C.
POSITIVE
In the unlikely event of the flexible component being destroyed, the drive will be maintained by the interaction of dogs which are integral with the flanges.
