Stock shaft locking elements

Locking Assemblies

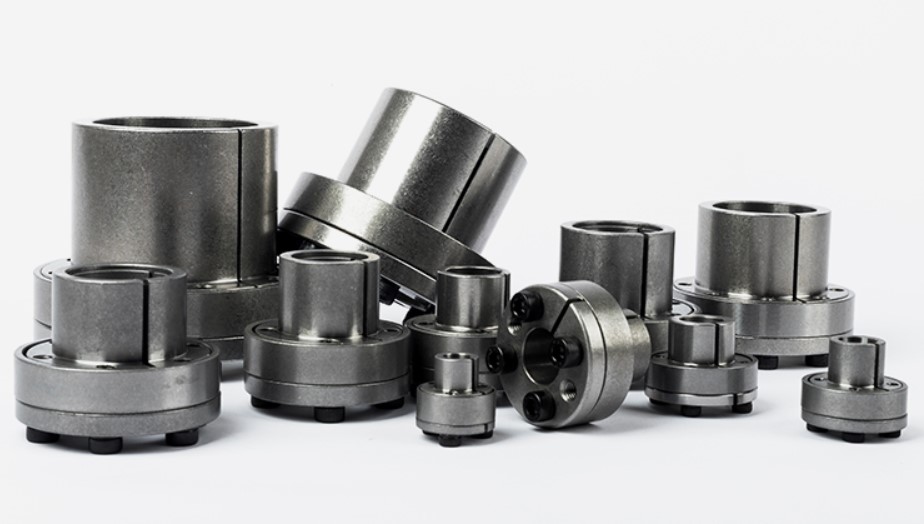

Simple and quick assembly and disassembly, complete freedom from maintenance and wear, absolutely backlash-free power transmission: KARLS Locking Assemblies are friction-locked shaft-hub connections manufactured to the highest quality standards. They are suitable for the precise fastening of all types of hubs, e.g. toothed gears, running wheels and chain sprockets, levers, cam discs, belt and brake discs, slip-on gears, couplings or flanges, on shafts and axles. Compared to external clamping connections, e.g. shrink discs, locking assemblies are installed between shaft and hub. By tightening the clamping screws, inner and outer rings press themselves onto the contact surfaces of the components to be connected, thus creating a friction-fit press connection. This allows not only the highest torques but also axial and radial as well as bending loads to be transmitted reliably. KARLS Locking Assemblies are the superior alternative to conventional shrink-fits, wedge, keyway or polygonal connections and offer outstanding concentricity and resistance to alternating torsion. Our locking assemblies are available to users in various standard designs and sizes as well as customised special solutions.
