Cylindrical clamping bushes or tensioners have a conical inner and outer ring with clamping bolts. They are designated as "cylindrical" because these clamping bushes are mounted in a cylindrical bore.Every bush can be supplied with different bore size – either in metric series (mm) or in inches- according to customer‘s requirement.

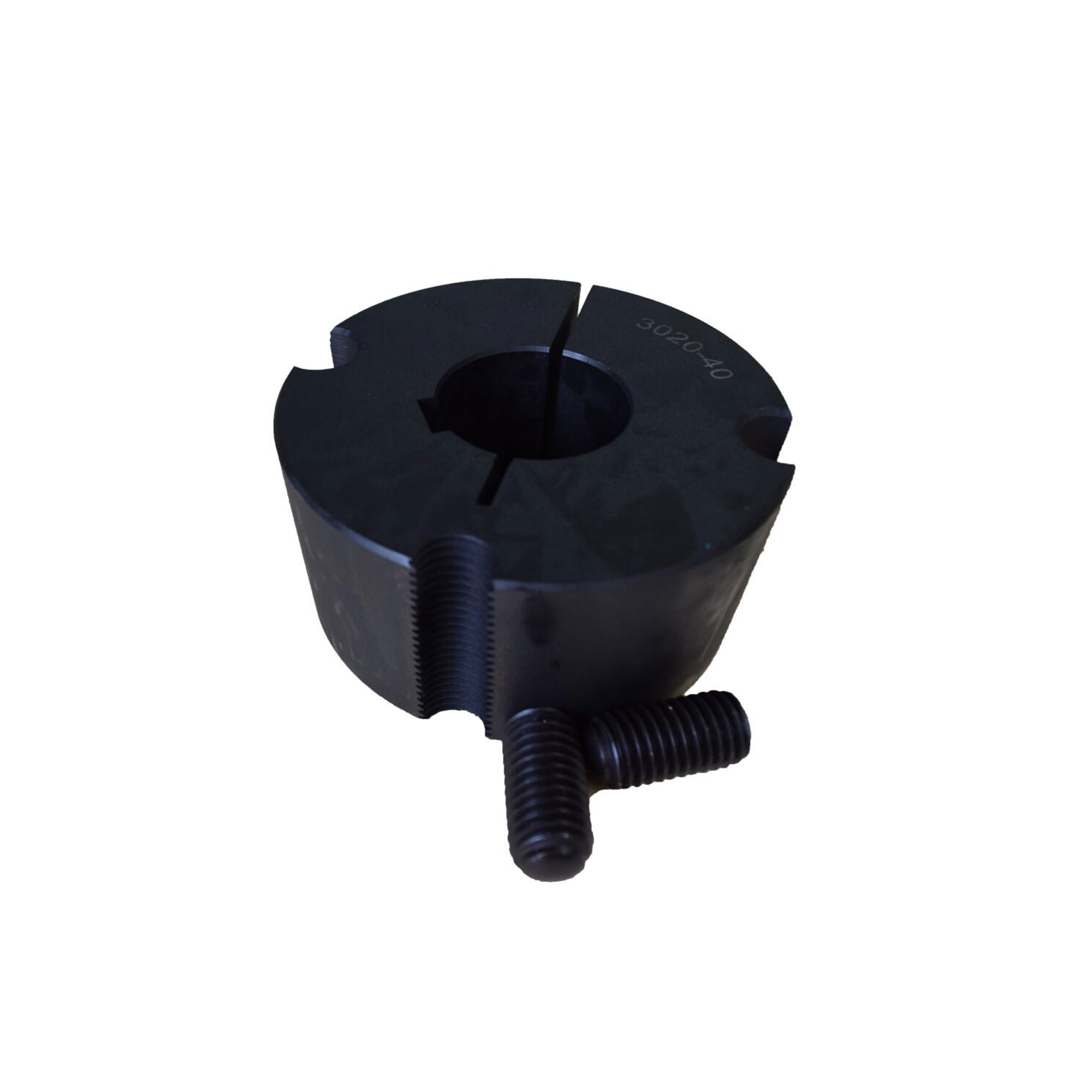

BTL Taper bushing produced by Karls are made of GG25 cast iron. With precision machining , they are fixed with set screws imported from Japan and packed separately in nice cartons. They are truly the excellent choice for taper bushings.

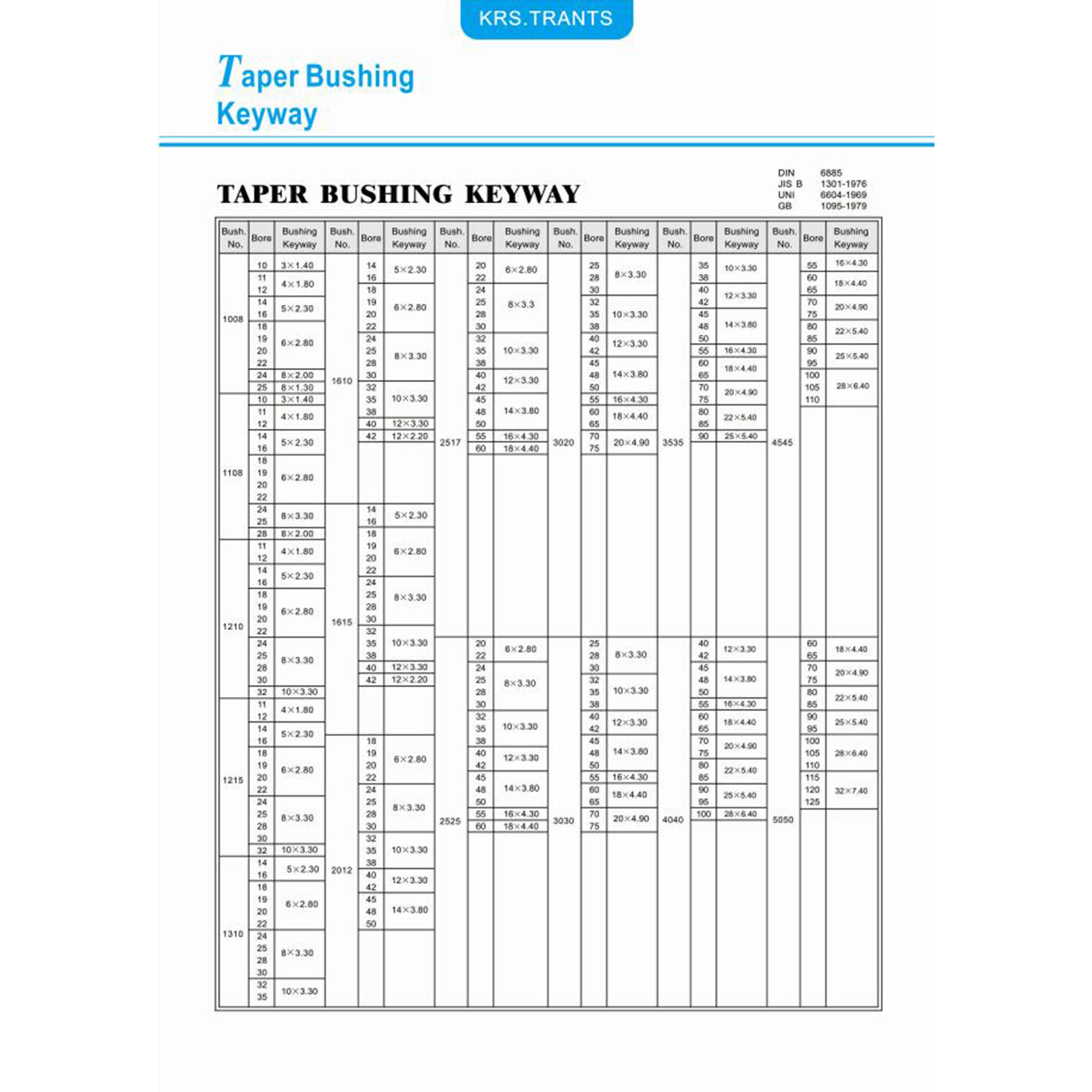

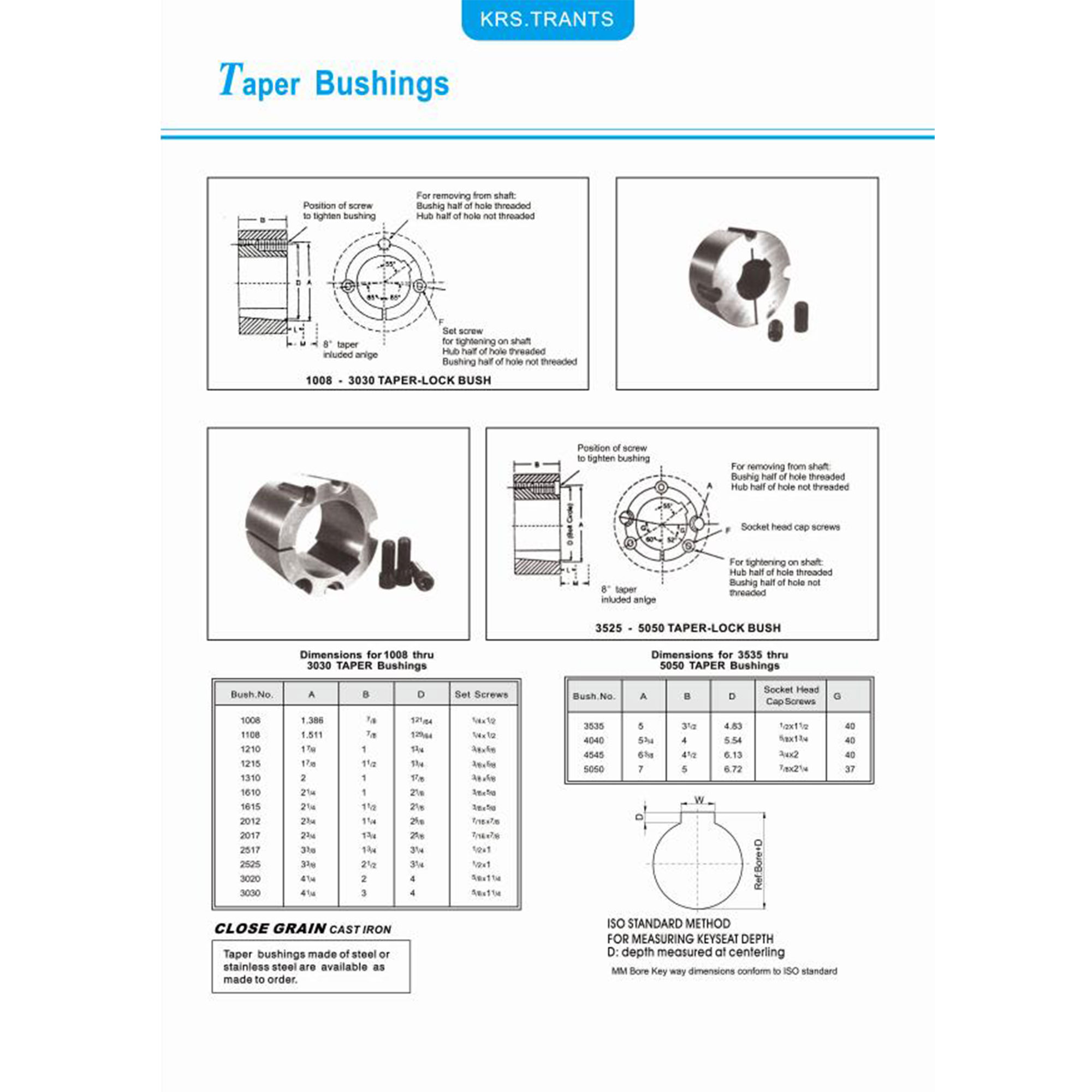

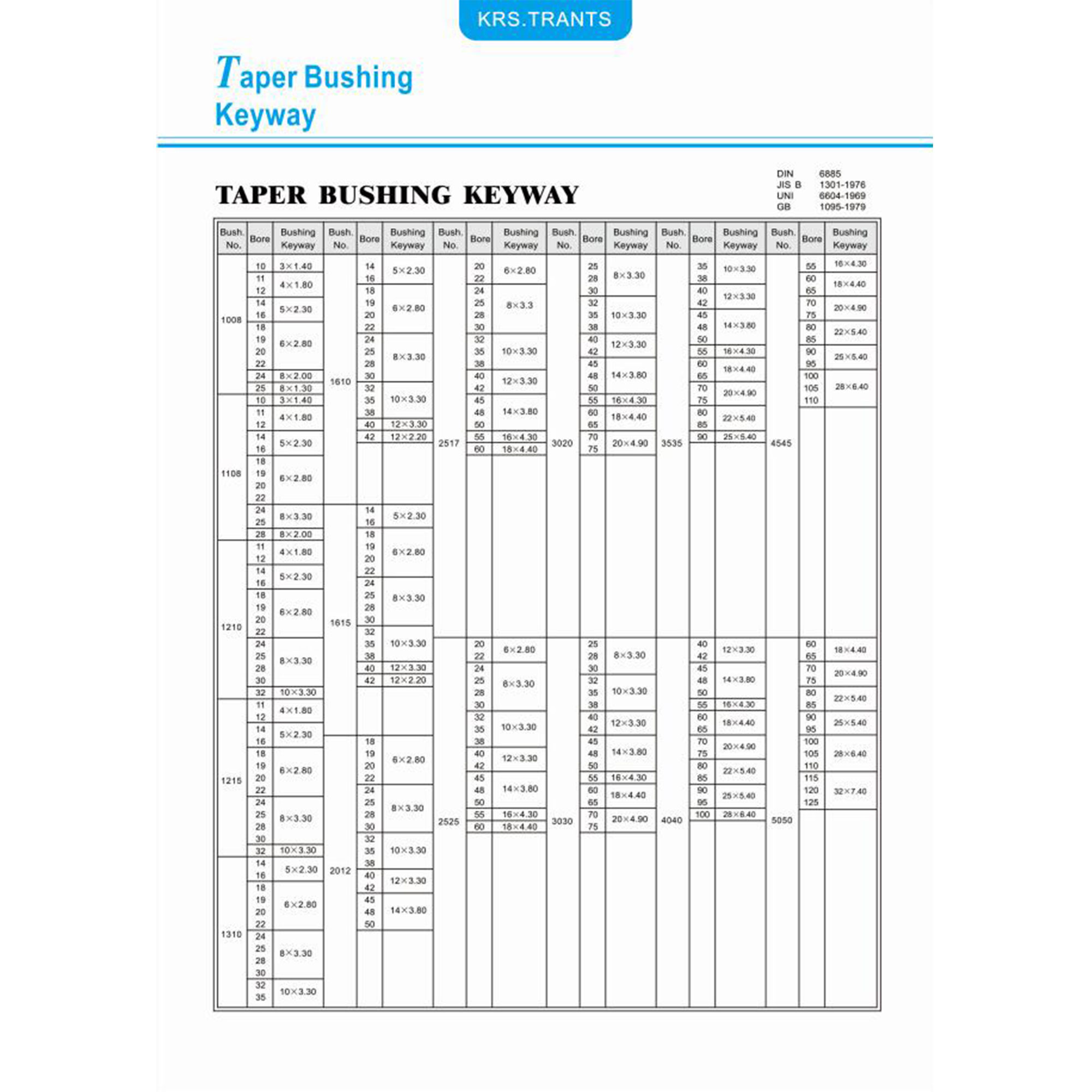

Specifications for the series of BTL Taper Bushings:
1008-5050 items can be sold off the shelf based on the stock with immediate delivery.
At the same time, we can make BS, UNC tap holes, inner bore and keyways for taper bushing in metric and standard calculations. They are very suitable to the European, U.S. and Japanese markets.
6050-12100 are produced against orders with prompt delivery. Bore and keyways of taper bushing can be in metric and standard dimensions according to BS and UNC standards.
We support various ways for international transportation.
Customers can choose a suitable way based on their needs such as by air, by sea and by express(Fedex, DHL, TNT etc.).
If you have any enquiry about quotation or cooperation, please feel free to email us at krs186@aliyun.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
